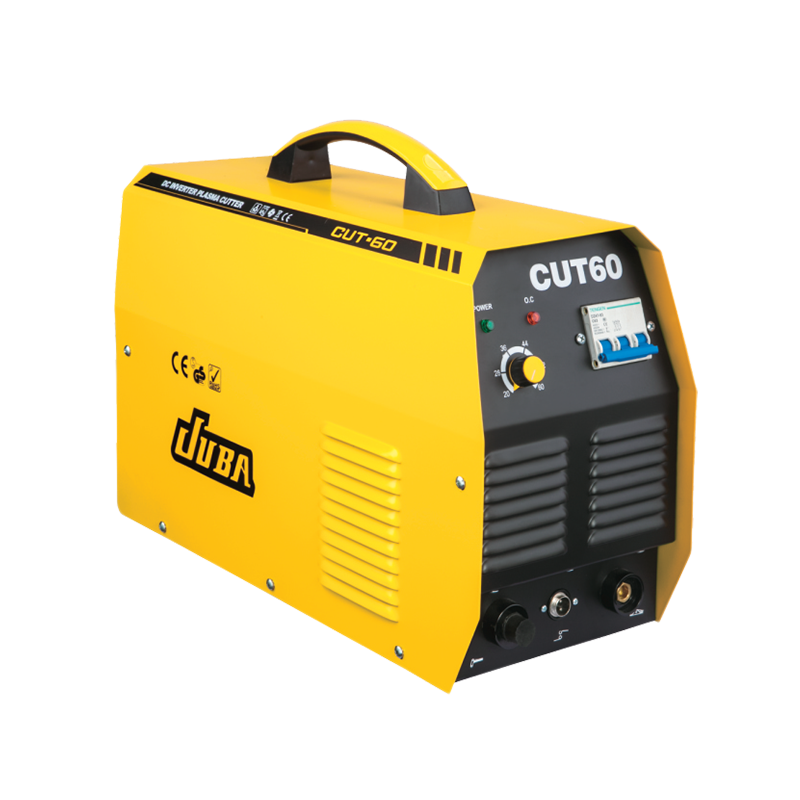

CUT SERIES DC INVERTER PLASMA CUTTER RATED INPUT POWER 7.9-15KVA

● Cutting capacity increases 1.8 times higher in cutting speed comparing with flame cutter.

● Thick metal plate can be cut easily and quickly.

● Suitable for cutting stainless steel, copper, iron and aluminum metal etc.

● Simple operation and smooth cutting surface.

● HF untouched Arc-starting cutting(100)

● HF touched Arc-starting cutting(30,40,60)

Contact Us

  • Item

    CUT-60

    CUT-80

    CUT-100

    Power Voltage(v)

    220(1PH)/380(3PH)

    380

    380

    Rated Input Power(kva)

    7.9

    12

    15

    No-load Voltage(V)

    236

    270

    270

    Current Range(a)

    20-60

    20-80

    20-100

    Rated Output Voltage(v)

    104

    112

    120

    Rated Duty Cycle(%)

    60

    60

    60

    Efficiency(%)

    85

    85

    85

    Insulation Class

    F

    F

    F

    Protection Class

    IP21s

    IP21s

    IP21s

    Weight(kg)

    19

    25

    35

    Measurement(mm)

    585×320×420

    630×370×500

    620×325×560

    Max.cutting Thickness(mm)

    18

    25

    30

    Cod.(no)

    860010

    860011

    860012


    CUT-100 TYPE STANDARD
